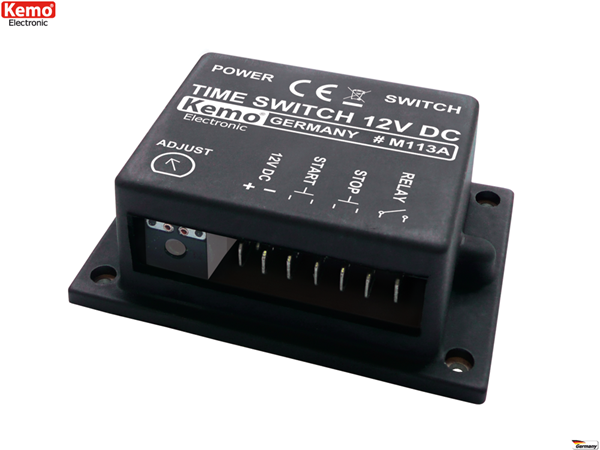

KEMO M113 elektronik zamanlama siviçi 12V DC
%3
indirim
1.485,99 TL
1.441,41 TL
% 3 Ekstra havale indirimi!
KEMO M113 elektronik switch (şalter) 12-15V DC
Tuşa bastıktan sonra diğer cihazları açar ve ayarlanan süre sona erdiğinde 1 x AÇIK (maks. 3 A) kurulu röle noktası ile otomatik olarak kapatır. Zaman aşımı, ikinci anahtarla her zaman kesintiye uğrayabilir. Çalıştırma için 2 adet buton gereklidir.
| Technical Data | |
| Operating voltage | 12 - 15 V/DC |
| Current consumption | approx. 20 mA / 80 mA (relay off / on) |
| Adjustable time | approx. 2 sec. to 23 min., (± 30 %) |
| Connection | via flat-pin plug at the module |
| Displays | 2 (1 x LED operating voltage, 1 x LED relay "ON”) |
| Relay point | 1 x ON, max. 3 A, max 25 V (The installed relay point may also switch up to 230 V/AC, but in this case the safety regulations of VDE like protection against accidental contact, etc. have to be observed) |
| Dimensions | approx. 87 x 60 x 33 mm (with mounting bottom) |
